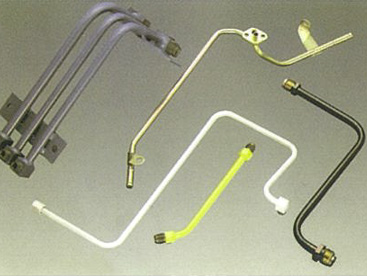

PipesPrecision carbon steel tubes for hydraulic piping are used in a variety of industrial fields, including machine tools, construction machinery, printing machinery, refrigeration machinery, transportation machinery, agricultural machinery, automation equipment such as ships, and piping for drive equipment.
Sankin manufactures ``OST-1'' and ``OST-2'' according to the Japan Fluid Power Industry Association standards using outstanding technology and equipment. Heat treated in an atmospheric annealing furnace to keep the inside and outside of the tube clean.Furthermore, to help our customers manage their inventory and products, we sell caps in different colors based on thickness.
Chemical composition
kinds | symbol | chemical composition | Manufacturing method | |||||
---|---|---|---|---|---|---|---|---|
C | Si | Mn | P | S | Cu | |||
1 type | OST-1 | ≦0.20 | ≦0.35 | 0.25~0.60 | ≦0.40 | ≦0.40 | ― | E-C or S-C |
2 type | OST-2 | 0.08~0.18 | 0.10~0.35 | 0.30~0.60 | ≦0.35 | ≦0.35 | ≦0.20 | S-C |
Mechanical properties
kinds | symbol | tensile strength (N/mm²) |
Yield point or yield strength (N/mm²) |
Elongation No.11 test piece(%) (%) |
bending test | Push expansion test | |
---|---|---|---|---|---|---|---|
bending angle | inner radius | ||||||
1 type | OST-1 | ≦440 | ≧175 | ≧35 | 180° | Outer diameter ×4 |
"Outer diameter ×1.2 |
2 type | OST-2 | ≦440 | ≧195 | ≧35 |
Dimensional tolerance
Outer diameter(mm) | thickness(mm) | length(mm) | |||||
---|---|---|---|---|---|---|---|
≦25 | 25<~≦38 | 38<~≦50 | 1.0≦~<1.5 | 1.5≦~<2.0 | ≦2.0 | ≦6,000 | >6,000 |
±0.10 | ±0.15 | ±0.20 | ±15% | ±0.20 | ±10% | +10,-0 | +15,-0 |
Sankin's fin tube uses high-frequency resistance to spirally weld the fins to the tube.
It is used in waste heat recovery boilers and small once-through boilers for thermal power generation, and has received high praise.

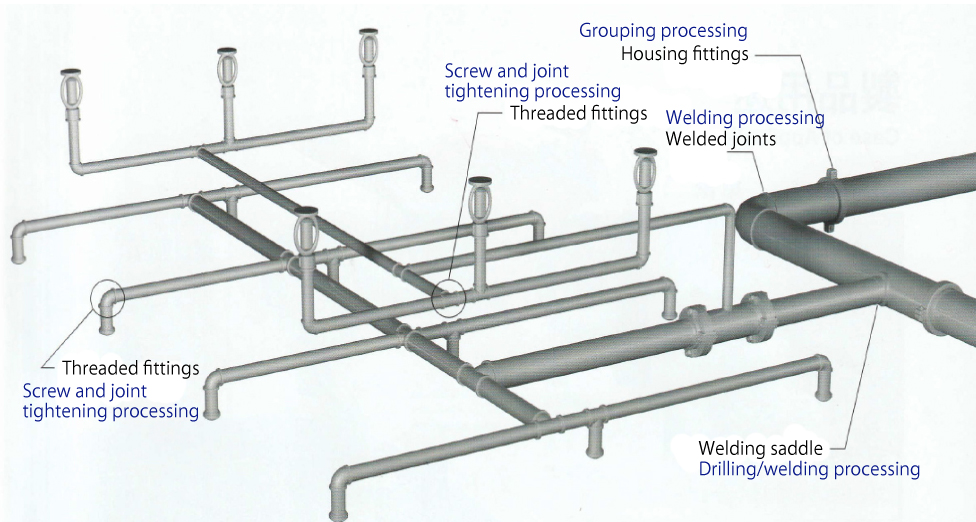

We offer pre-processed parts. Omitting processing at the construction site of piping work promoter labor saving,uniform quality and safety.
